Nous Y (MR)

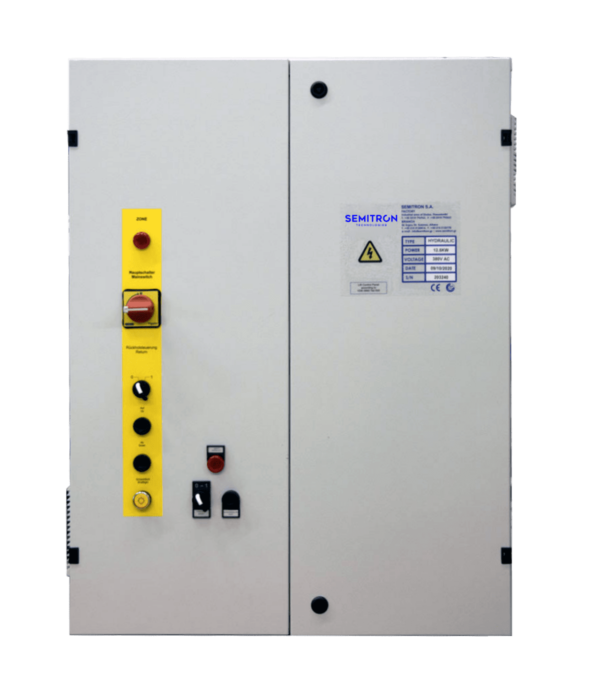

Nous lift control panel for hydraulic lifts
- Description
- Technical data
- Features
- Product files
Description
Control Panel for hydraulic lifts
The panel for hydraulic lifts NOUS Y – (MR) is made of high quality materials, in order to offer uninterrupted operation. It is based on the new generation NOUS control unit and covers the requirements of the most demanding installations for hydraulic lifts having the ability to drive any type of valve and boiler. Both the design and the production of the panel follow high quality standards while at the same time the friendly control environment based on a 5 ”TFT touch screen offers speed and ease of operation.The NOUS control module also supports multiple languages, while providing the ability to remotely view and navigate the entire elevator (elevator status, port status, etc.) as well as instant access to maintenance (event log, maintenance function, etc.) via cloud .
In case extra inputs / outputs are required, an external expansion unit is supported which provides additional inputs / outputs to meet all installation needs. In addition, the user can configure most elevator devices directly from the NOUS menu (e.g. .x floor displays, Inverter etc.) as long as they are connected to the CANopen protocol and can also very easily upgrade the NOUS software itself, if required, using a shared USB memorystick or a shared microSD memory card.
The NOUS Y – (MR) panel of Semitron is a modern product, technologically advanced, which provides the possibility of servicing projects up to 127 stops and 8 cooperating elevators. It can meet the needs of both new and older installations, as it meets the standards EN 81.20 / 50, EN81-1 / 2, EN81-70 / 71/72
• Operating voltage 380VAC (three phase)
• Auxiliary voltage 24VDC
• Power from 4kW to 60kW
• Ability to service the highest reach that a hydraulic lift can reach
• Possibility of cooperation of 8 lifts (Octoplex)
• Panel dimensions: 80X60X20 or 92Χ73Χ25
• Average table weight: 40kg
• Absoluteencoder (Shaftcopyingsystem)
• Central board with 5 “touch screen (touchscreen) and menu in many languages for easy and fast operation
• 2 serial communication channels CANopenCiA417 to which any CANopen device can be connected, for example inverter, cabin door, cabin / floor switch, etc.
• Remote control of the table via cloud service
• Possibility to select pump supply via direct excitation / boot / softstarter
• Ability to operate with all power units of the trade
• Possibility of balancing and rebalancing with open doors and before opening doors
• Possibility of automatic release
• Upgrade, program and save parameters via USBflashstick or microSD card
• Ability to work with all automatic doors and doors type Bus 220VAC
• Emergency and test panels
• Bypass switch
• Check that the door contacts are working properly
• Programmable entrances / exits to cover even the most demanding constructions
